This is the seventh part of the Bit Twiddling series. For your convenience you can find other parts in the table of contents in Par 1 — Modifying Android application on a binary level

Today we’re going to tackle the problem of keeping windows in the same place when connecting over RDP. In the other blog post I said, that it’s not possible to control the order of the screens enumerated by mstsc /l programmatically, and that we have to move the screens by plugging them differently. Let’s actually change that with some low-level hacks.

What is the problem again

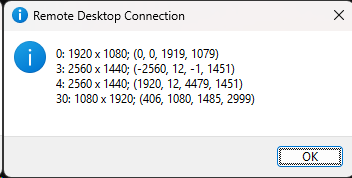

Let’s say, that I have the following monitors reported by mstsc /l:

We can see that I have 4 monitors:

• Monitor 1 is in the center. It’s reported as id 0 in the MSTSC Setup
• Monitor 2 is on the left. It’s reported as id 3 in the MSTSC Setup
• Monitor 3 is on the right. It’s reported as id 4 in the MSTSC Setup
• Monitor 4 is at the bottom. It’s reported as id 30 in the MSTSC Setup

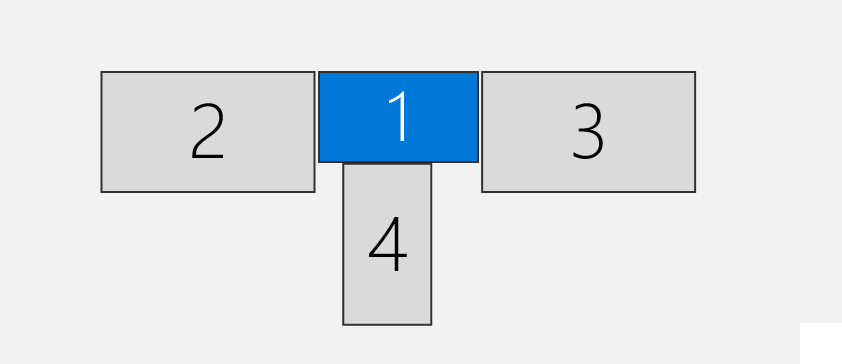

Once I log in to the remote machine, this is what the Display in RDP shows:

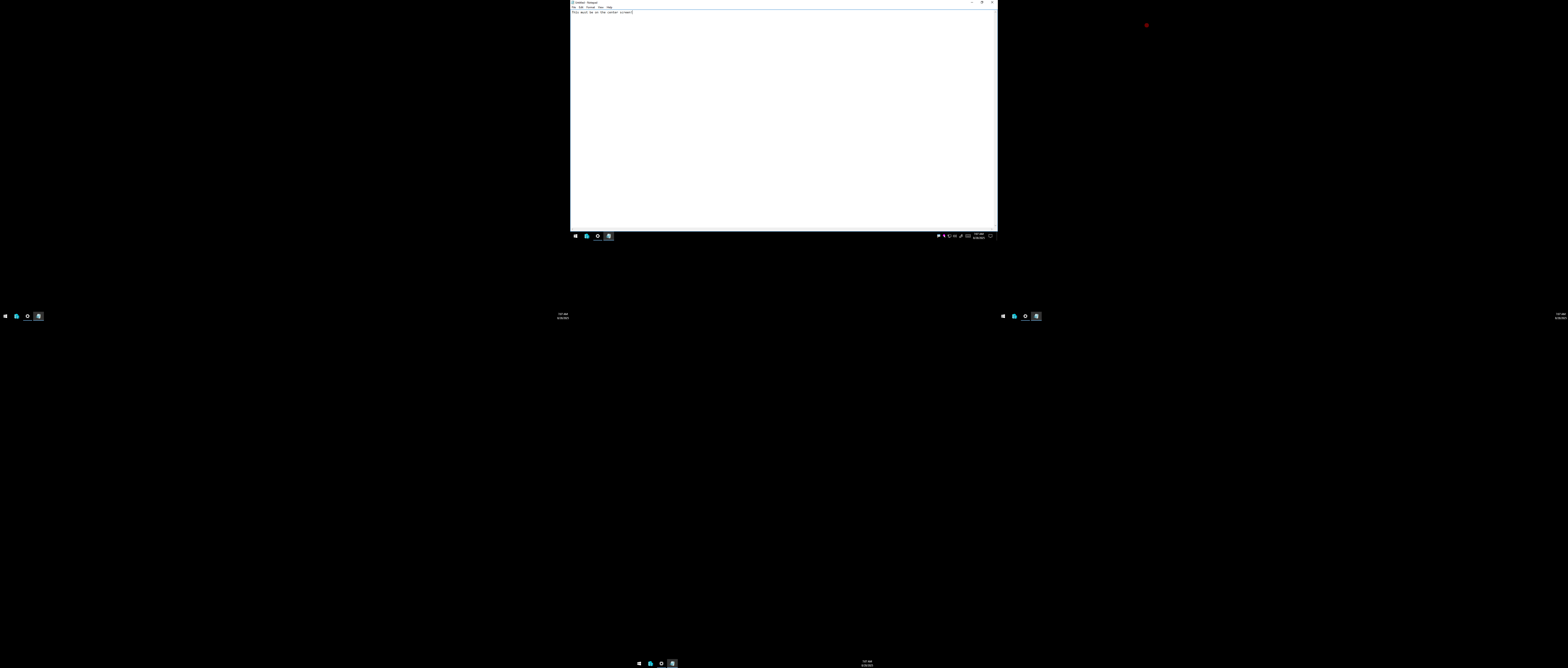

Looks good. Most importantly, if I open a window on the Monitor 1 (the one in the center), then it is shown like this:

Important part in this picture is that the notepad is in the center. You don’t need to zoom in to see any other details.

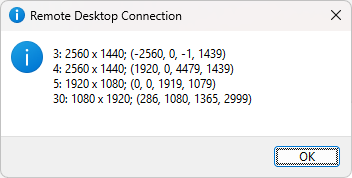

Now, let’s say that I connect another display and make it duplicate the Monitor 1. Windows may decide that the order of the devices changed, and now mstsc /l shows this:

Notice that the Monitor 1 in the center changed its id to 5.

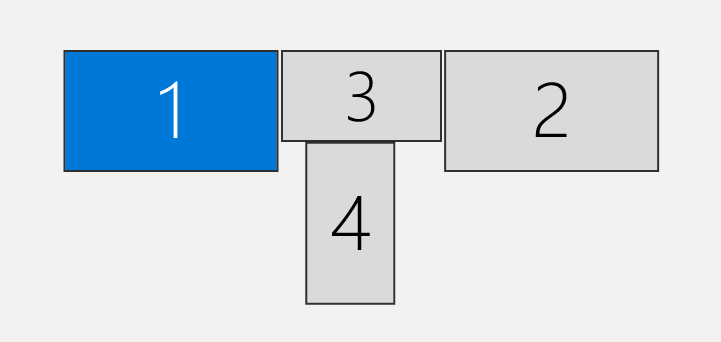

Let’s connect to the RDP server again. This is what Display in RDP shows:

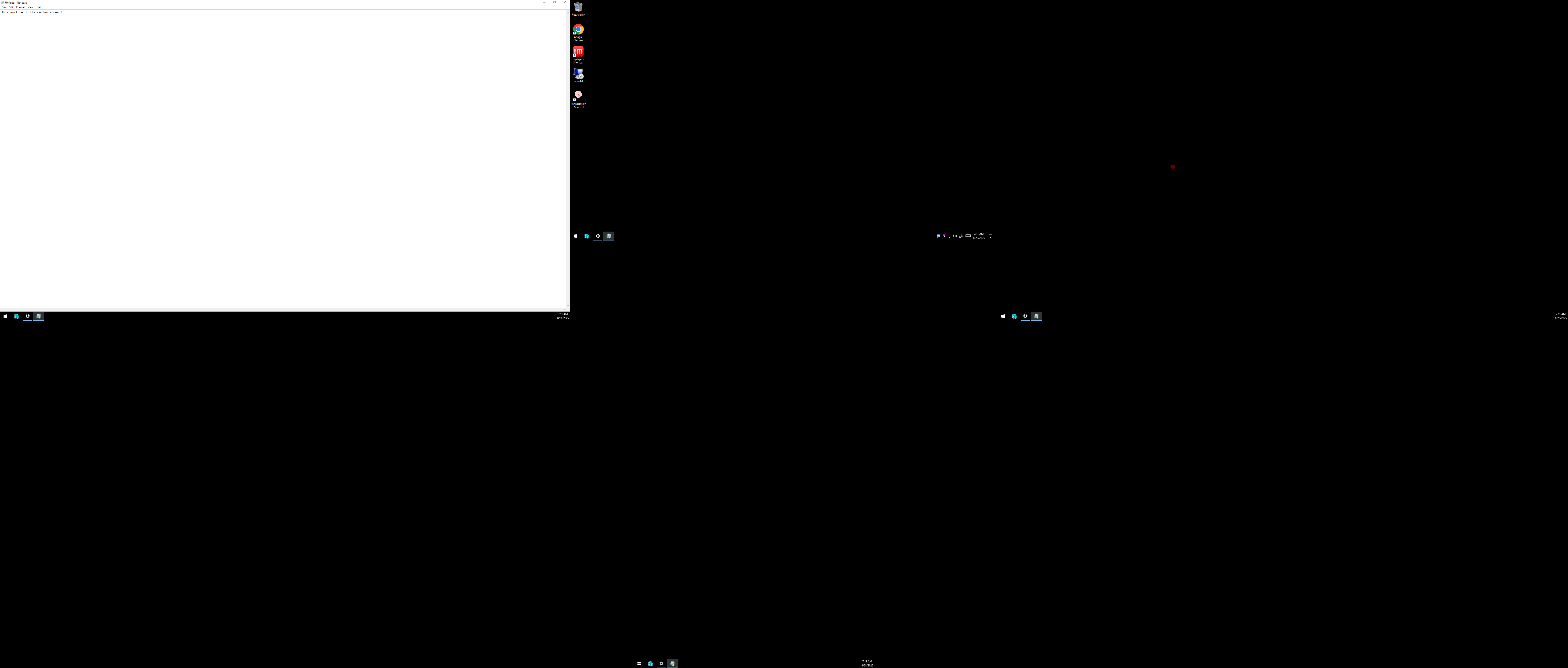

Notice that the monitors changed their numbering. First monitor is now on the left. What’s worse, the windows have moved:

You can see that the notepad moved to the left. It didn’t move actually, it is still on the same first monitor. It’s that the monitor changed its position.

What’s worse, even if I add selectedmonitors:s:5,3,4,30 to the .rdp file, the problem is still there.

Why does it happen? You can read more in this article where I describe it in details. But now, let’s try to fix it.

How it works

We can use API Monitor or other strace-like application to figure out what happens. mstsc uses EnumDisplayDevicesW function to find all the devices.

The API accepts a parameter with the device id (that is the second parameter), and the pointer to the structure where the details will be stored (the third parameter). Most importantly, it returns true or false indicating whether a monitor with given device id exists.

mstsc simply runs in a loop like this:

mstsc iterates over the devices starting from zero until there are no more devices reported by the API. This explains why numbering in mstsc /l is not continuous and why the numbers may change any time.

How can we fix that? We need to hijack the method, check the second parameter, and override it accordingly. With the screenshots above, the loop runs like this:

We would like it to effectively do something like this:

Let’s do it.

Implementation

As with other dirty hacks, we are going to use the debugger to inject the payload and do some memory operations.

The plan is as follows:

• We allocate some memory on the side
• We add a payload call_and_return_false that calls the just_call payload and returns false afterwards
• We add a payload call_and_return_true that calls the just_call payload and returns true afterwards
• We add a payload just_call that restores proper registers and then just calls the original EnumDisplayDevicesW
• We find the regular EnumDisplayDevicesW implementation and do the long jump to our main payload
• The main payload checks the second parameter (which is in the rdx register). If the parameter should be changed, it is modified and then we jump to the call_and_return_true or call_and_return_false payload accordingly. Otherwise, it jumps to the just_call payload.

Let’s see the payloads in action. First, let’s examine the original EnumDisplayDevicesW method:

Nothing special here. It simply preserves the registers. We’ll need to override this with a long jump to our payload, like this:

This way, we override the first 16 bytes.

Okay, let’s now see the main payload:

We have a series of instructions like this:

We compare each monitor in a sequence, override the parameter if needed, and jump accordingly.

Now, let’s see the payload for call_and_return_false

This conceptually looks like this:

We do the same for call_and_return_true and just return different value.

The payload for just_call looks like this:

We simply run the preamble of the WinAPI function (which we scratched by introducing long jump over there), and then we jump th the WinAPI function in the correct place.

Automation

Let’s now see some sample C# code that does all of that automatically:

Most of that should be rather straightforward, but let’s go through it line by line.

We start by allocating some memory in the process and dumping the machine code of the EnumDisplayDevicesW function (lines 3-12).

We then parse the output (lines 14-15 and 19-25). We then calculate some dependent labels (lines 27-29).

Important part is the pattern in line 17. We encode it in the following way (spaces added for clarity):

We then parse this pattern and use it in lines 31-44.

Finally, we concatenate all of that together and create the instructions for the debugger (lines 46-57).
